Scope of Application

【Operating Instructions】

Used for thickness measurement of various woven fabrics, knitted fabrics, and nonwovens. Basic applications: suitable for thickness testing of films, sheets, and separators. Suitable for thickness testing of paper and cardboard. Suitable for thickness testing of foils and silicon wafers.

**YG141D Fabric Thickness Gauge**

**【Scope of Application】:**

1. Used for thickness measurement of various woven fabrics, knitted fabrics, and nonwovens.

2. Basic applications: suitable for thickness testing of films, sheets, and separators.

3. Suitable for thickness testing of paper and cardboard.

4. Suitable for thickness testing of foils and silicon wafers.

5. Suitable for thickness testing of metal sheets.

6. Suitable for thickness testing of textile materials.

7. Suitable for thickness testing of solid electrical insulators.

8. Suitable for thickness testing of nonwoven materials, such as diapers and sanitary napkin sheets.

9. Extended measuring range up to 5 mm or 10 mm, suitable for thickness testing of sheets and plates.

10. Suitable for thickness testing with special requirements.

**【Test Methods】:**

GB/T3820; FZ/T60004; FZ/T60003; ISO5084, 9073; ASTM D1777, etc.

**【Product Features】:**

1. The contact measurement method is adopted, strictly complying with standard requirements, effectively ensuring the standardization and accuracy of the test.

2. The contact area and measurement pressure are strictly designed in accordance with the standard, while various non-standard customizations are supported.

3. The measuring head automatically rises and falls during the test, effectively avoiding errors caused by human factors.

4. Supports both automatic and manual measurement modes, allowing users to choose according to their preferences.

5. Real-time display of measurement results such as maximum, minimum, average values, and standard deviation, providing analysis data for user convenience.

6. Equipped with standard gauge blocks for system calibration, ensuring test accuracy and data consistency.

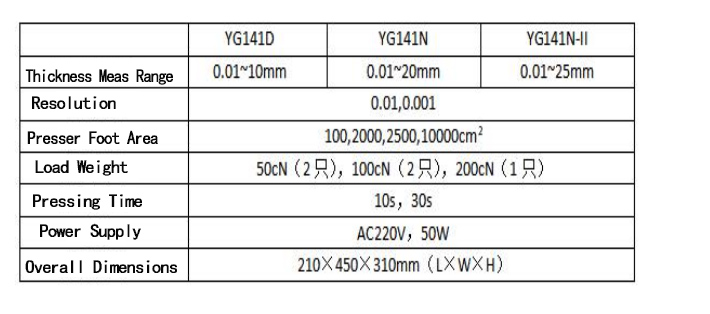

**【Technical Parameters】:**

*(To be provided)*
