Scope of Application

【Operating Instructions】

Used for the visual evaluation of color under standard light source conditions.

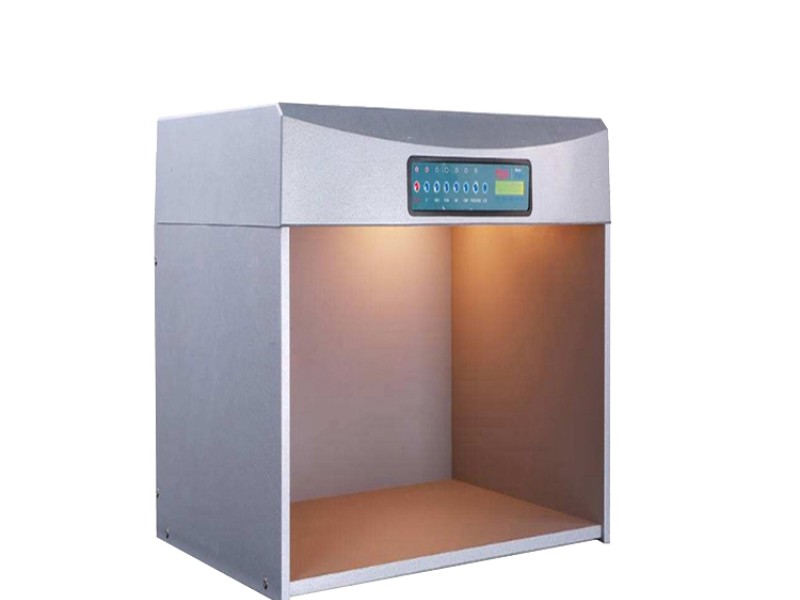

YG982 Standard Light Source Cabinet

[Scope of Application]Used for the visual evaluation of color under standard light source conditions.

[Compliance Standards]FZ/T 01047, BS 950, DIN 96173, ASTM D1729, etc.

[Technical Specifications]

1. D65 International Standard Artificial Daylight: 36W × 2 lamps; Color Temperature: 6500K

2. A/F Yellow Light Source (Color Comparison Reference): 40W × 6 lamps; Color Temperature: 2700K

3. TL84 European/Japanese Commercial Light Source: 36W × 2 lamps; Color Temperature: 4000K

4. CWF American Store Light Source: 40W × 2 lamps; Color Temperature: 4200K

5. UV Ultraviolet Light Source: 40W × 1 lamp; Peak Wavelength: 365nm

6. U30 American Commercial Light Source: 36W × 2 lamps; Color Temperature: 3000K

7. Power Supply: AC 220V 50Hz

8. Power: 350W

9. Dimensions: 1310 × 620 × 800 mm

10. Net Weight: 78 kg
