Scope of Application

【Operating Instructions】

Used for measuring the diameter of animal fibers, chemical fibers, cotton, hemp, and other fibers. It provides data on fiber count, average fiber fineness, standard deviation, coefficient of variation, and coarse fiber content. By analyzing the morphology and measuring the diameter of individual fibers in blended products, the fiber content of various blended products can be determined.

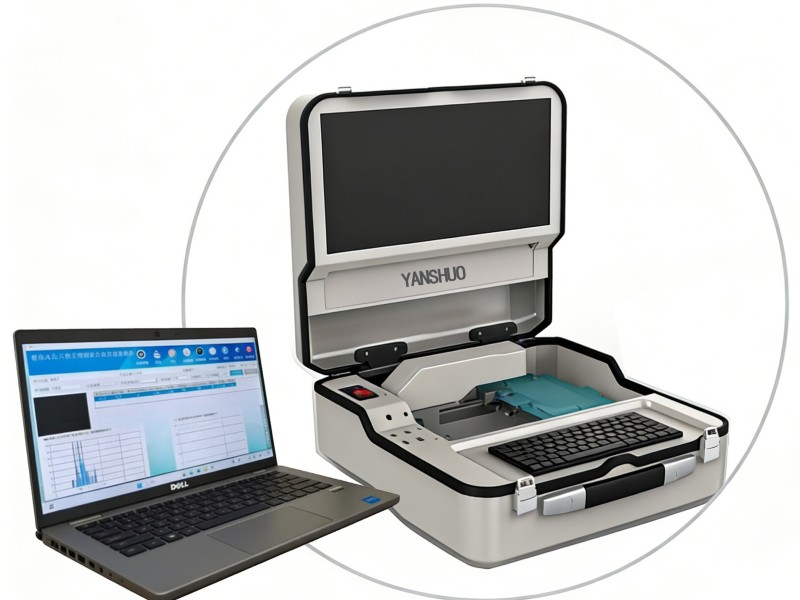

YG002 Fiber Fineness Instrument

[Scope of Application]Used for measuring the diameter of animal fibers, chemical fibers, cotton, hemp, and other fibers. It provides data on fiber count, average fiber fineness, standard deviation, coefficient of variation, and coarse fiber content. By analyzing the morphology and measuring the diameter of individual fibers in blended products, the fiber content of various blended products can be determined.

[Compliance Standards]

• FZ/T 01057.3 Textile fiber identification test method - Microscopy method

• AATCC 20A Fiber Qualitative Analysis

• GB/T 10685 Test method for wool fiber diameter - Projection microscopy method

• GB/T 3364 Test method for carbon fiber diameter and equivalent diameter (Microscopy method)

• ISO 137 Determination of wool fiber diameter - Projection microscopy method

[Instrument Features]

1. System: The system utilizes computer digital image processing technology, consisting of a microscope, camera, computer, and detection software to provide fiber diameter measurement functions.

2. Observation: Used to observe the cross-sectional morphology of various animal/plant fibers, man-made fibers, profile fibers, and hollow fibers, and to measure cross-sectional area.

[Technical Specifications]

1. Working Mode: Manual measurement; Semi-automatic measurement; Free measurement; Multi-point measurement; Automatic statistical analysis.

2. Instrument Structure: Microscope; Industrial camera; Analysis software; Computer.

3. Test Functions: Fiber qualitative analysis; Fiber diameter measurement; Fiber cross-section analysis.

4. Measurement Range: 0 ～ 200 µm

5. Measurement Accuracy: 0.1 µm

6. Power Supply: AC 220V 50Hz

7. Power: 300W

8. Dimensions: 700 × 440 × 550 mm

9. Net Weight: 15 kg
