Scope of Application

【Operating Instructions】

Protective clothing materials are expected to come into contact with aerosols generated by contaminated liquids. Therefore, it is necessary to determine their resistance to the penetration of contaminated liquid aerosols to characterize the protective effect of the material against contaminated liquids.The Contaminated Liquid Aerosol Penetration Tester is used to test the microbial barrier properties of medical protective clothing or sterile medical device packaging materials under conditions specified in standard tests.

YS179 Contaminated Liquid Aerosol Penetration Tester

【Product Overview】
Protective clothing materials are expected to come into contact with aerosols generated by contaminated liquids. Therefore, it is necessary to determine their resistance to the penetration of contaminated liquid aerosols to characterize the protective effect of the material against contaminated liquids.

The Contaminated Liquid Aerosol Penetration Tester is used to test the microbial barrier properties of medical protective clothing or sterile medical device packaging materials under conditions specified in standard tests.

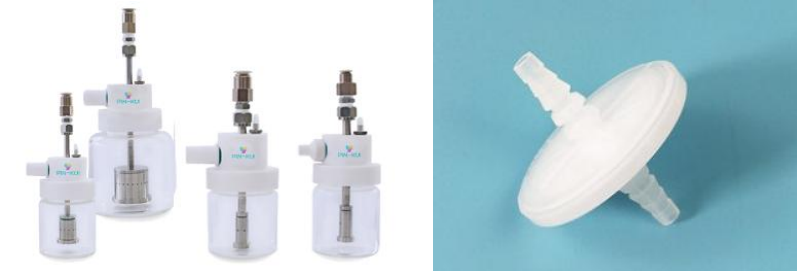

The product consists of: a test chamber, a biological safety cabinet, a microbial aerosol generator, a sample filtration assembly, and a vacuum control system. The product features simple operation and intelligent control.

【Scope of Application】

• Medical protective clothing manufacturers

• Medical device inspection centers

• Third-party laboratories

• Food and Drug Administration agencies

【Compliance Standards】

• YY/T 1790: Reusable medical protective clothing - Appendix B: Test method for resistance to penetration by microbial contaminated aerosols

• ISO /DIS 22611: Protective clothing against infective agents - Test method for resistance to penetration by microbial contaminated aerosols

【Technical Specifications】

• Test Flow Rate: 0 - 57 LPM

• Test Stations: 2 stations (1 experimental station, 1 control station)

• Max Nebulization Volume: 7 - 8 L/min

• Nebulized Particle Diameter: Average Aerodynamic Diameter 3.0 μm

• Liquid Capacity: 20 mL

• Test Chamber Dimensions: 280mm × 280mm × 280mm (Note: Corrected from "28mm" based on standard chamber sizes)

• Test Chamber Material: Polymethyl Methacrylate (PMMA)

• Operation Mode: Pull-out design for easy sample replacement

• Instrument Dimensions: 450mm × 320mm × 320mm

• Power Supply: 220V AC 50Hz
