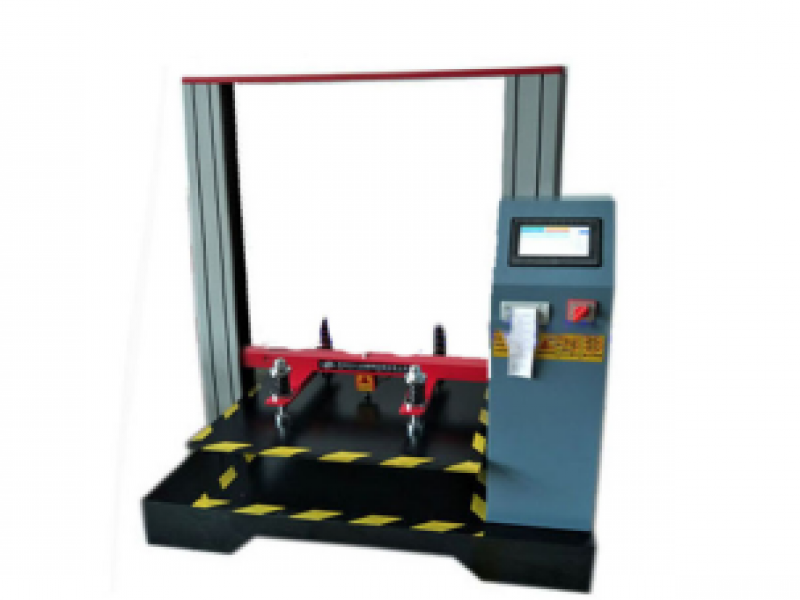

YS-203B Platen Compression Tester
Scope of Application
【Operating Instructions】
- The microcomputer‑controlled packaging container compression tester is a multifunctional, standard‑type quality inspection instrument for cartons. It is mainly used for compressive strength testing of medium‑sized regular corrugated cartons and for complete container compressive strength testing of packaging containers (with a compressive strength less than 5 tons) made of other materials — for example, food and beverage packaging, instant noodle packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc. This instrument offers high control accuracy and advanced technology, making it currently the most cost‑effective general‑purpose carton compression tester in China. It possesses
**YS-203B Platen Compression Tester**
**【Scope of Application】**
The microcomputer‑controlled packaging container compression tester is a multifunctional,
standard‑type quality inspection instrument for cartons. It is mainly used for compressive
strength testing of medium‑sized regular corrugated cartons and for complete container
compressive strength testing of packaging containers (with a compressive strength less than
5 tons) made of other materials — for example, food and beverage packaging, instant noodle
packaging, cosmetic packaging, beer packaging, grain and oil packaging, etc. This
instrument offers high control accuracy and advanced technology, making it currently the
most cost‑effective general‑purpose carton compression tester in China. It possesses
all the parameter testing, display, memory, statistics, printing, and real‑time compression
curve display functions required by the standards. With data processing capabilities,
it can directly produce statistical results from the data, and features automatic reset and
fault diagnosis for easy operation.
This tester has three standard operating modes, whose functions are described below:
- **Strength test:** measures the maximum compressive strength and displacement of
the carton body.
- **Fixed‑value test:** detects the overall performance of the carton based on set pressure
and displacement values.
- **Stacking test:** according to national standard requirements, stacking tests can be
performed under different conditions, such as 12 hours or 24 hours.
**【Applicable Standards】**
GB/T 4857.4‑92 Packaging — Transport packages — Compression test method
GB/T 4857.3‑92 Packaging — Transport packages — Stacking test method using static load
**【Product Features】**
1. After test completion, automatic return to the starting position; automatic determination
of the crush force and automatic saving of test data.
2. Three settable speeds; full Chinese LCD operation interface; multiple selectable units.
3. Relevant data can be entered and the compressive strength automatically calculated;
built‑in package stacking test function; force and time can be set directly, and the
machine stops automatically after the test.
**【Technical Parameters】**
1. **Capacity:** 1000 kg
2. **Display mode:** Touch screen display
3. **Resolution:** 1/10,000
4. **Accuracy:** within ±0.5%
5. **Test space:** 1000 × 1000 × 1000 mm (L × W × H)
6. **Compression speed standard:** 10 ± 3 mm/min
7. **Printing functions:** Serial number, peak value, average value; data can be stored.
8. **Motor:** Taiwanese
9. **Reducer:** Italian, imported
10. **Material:** 45# steel
11. **Weight:** 550 kg
12. **Power supply:** 3‑phase, AC 220 V
13. **Safety devices:**
(1) Overload and emergency stop device
(2) Upper and lower travel limit device
(3) Automatic stop upon test completion
14. **Configuration:**
- Motor: 1 Taiwanese ChengBang unit
- Frequency converter: 1 HailiPu unit
- Sensor: 1 American Tekscan unit
- Control board: 1 self‑developed and manufactured unit
- Upper and lower compression plates: 2 pieces, 1000 × 1000 mm each
